Requirements

Before getting started, make sure that you’ve already:

What are you building?

In this tutorial, you will build an LLM-powered assistant that can complete a money transfer, reliably executing your business logic while allowing for fluid conversation. Here are some of the conversations your assistant will be able to handle after you define the money transfer process:

Happy path
All at once
Change of mind

User: I want to send moneyBot: Who would you like to send money to?User: to JenBot: How much would you like to send?User: $50Bot:Please confirm: you want to transfer $50.0 to Jen?User: yesBot: All done. $50.0 has been sent to Jen.Bot: Is there anything else I can help you with?!happy path

Following This Tutorial

You’ll need a free Rasa Developer Edition license This tutorial contains a mix of explanations and instructions. Whenever there are instructions you need to follow, you’ll see this ‘Action Required’ label: Action Required This assistant is powered by an LLM that we fine-tuned and uploaded to huggingface. For convenience, this tutorial will use a deployment that we host and make available for users working through the tutorial. If you prefer not to use a third-party API, you can run this model yourself. or use another LLM

Setup

Action Required For new users, the easiest way to get started is the Developer Quickstart — get a license, install Rasa Pro, and set up MCP in your IDE. You can also install Rasa Pro locally and use your own machine. To code along with this tutorial, navigate to an empty directory in your terminal, and run:

rasa init --template tutorial

If you’ve completed the Developer Quickstart, you already have your license and MCP set up. If you’ve installed Rasa locally, set your Rasa license in an environment variable:

Linux/MacOS
Windows

export RASA_LICENSE="your-rasa-pro-license-key"

setx RASA_LICENSE your-rasa-license-key

The variable will now be correctly set when you create a new cmd prompt window.

Remember to replace your-rasa-license-key with the your actual license key.

Overview

Open up the project folder in your IDE to see the files that make up your new project. In this tutorial you will primarily work with the following files:

data/flows.yml
domain.yml
actions/actions.py

Testing your money transfer flow

Action Required Train your assistant by running:

rasa train

Now, try telling the assistant that you’d like to transfer some money to a friend. Start talking to it in the browser by running:

rasa inspect

When you run the rasa inspect command in a GitHub Codespace, you’ll see a notification that your application is available on port 5005. Click ‘Open in Browser’ to access the inspector and start chatting.

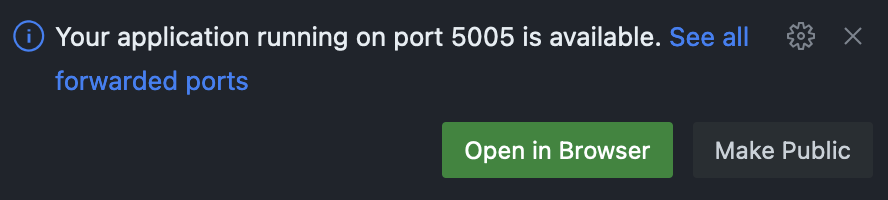

screenshot showing notification to click to open the inspector.

This template bot responds to chitchat by generating a response. If you want to disable this, delete the file data/patterns.yml and re-train.

Understanding your money transfer flow

The file data/flows.yml contains the definition of a flow called transfer_money. Let’s look at this definition to see what is going on:

flows.yml

flows:
  transfer_money:
    description: Help users send money to friends and family.
    steps:
      - collect: recipient
      - collect: amount
        description: the number of US dollars to send
      - action: utter_transfer_complete

The two key attributes of the transfer_money flow are the description and the steps. The description is used to help decide when to activate this flow. But it is also helpful for anyone who inspects your code to understand what is going on. If a user says “I need to transfer some money”, the description helps Rasa understand that this is the relevant flow. The steps describe the business logic required to do what the user asked for. The first step in your flow is a collect step, which is used to fill a slot. A collect step sends a message to the user requesting information, and waits for an answer.

Collecting Information in Slots

Slots are variables that your assistant can read and write throughout a conversation. Slots are defined in your domain.yml file. For example, the definition of your recipient slot looks like this:

domain.yml

slots:
  recipient:
    type: text
    mappings:
      - type: from_llm
  # ...

Slots can be used to store information that users provide during the conversation, or information that has been fetched via an API call. First, you’re going to see how to store information provided by the end user in a slot. To do this, you define a collect step like the first step in your flow above.

flows.yml

flows:
  transfer_money:
    description: Help users send money to friends and family.
    steps:
      - collect: recipient
      - collect: amount
        description: the number of US dollars to send
      - action: utter_transfer_complete

Rasa will look for a response called utter_ask_recipient in your domain file and use this to phrase the question to the user.

domain.yml

responses:
  utter_ask_recipient:
    - text: "Who would you like to send money to?"

After sending this message, Rasa will wait for a response from the user. When the user responds, Rasa will try to use their answer to fill the slot recipient. Read about slot validation to learn how you can run extra checks on the slot values Rasa has extracted. The diagram below summarizes how slot values are used to collect and store information, and how they can be used to create branching logic.

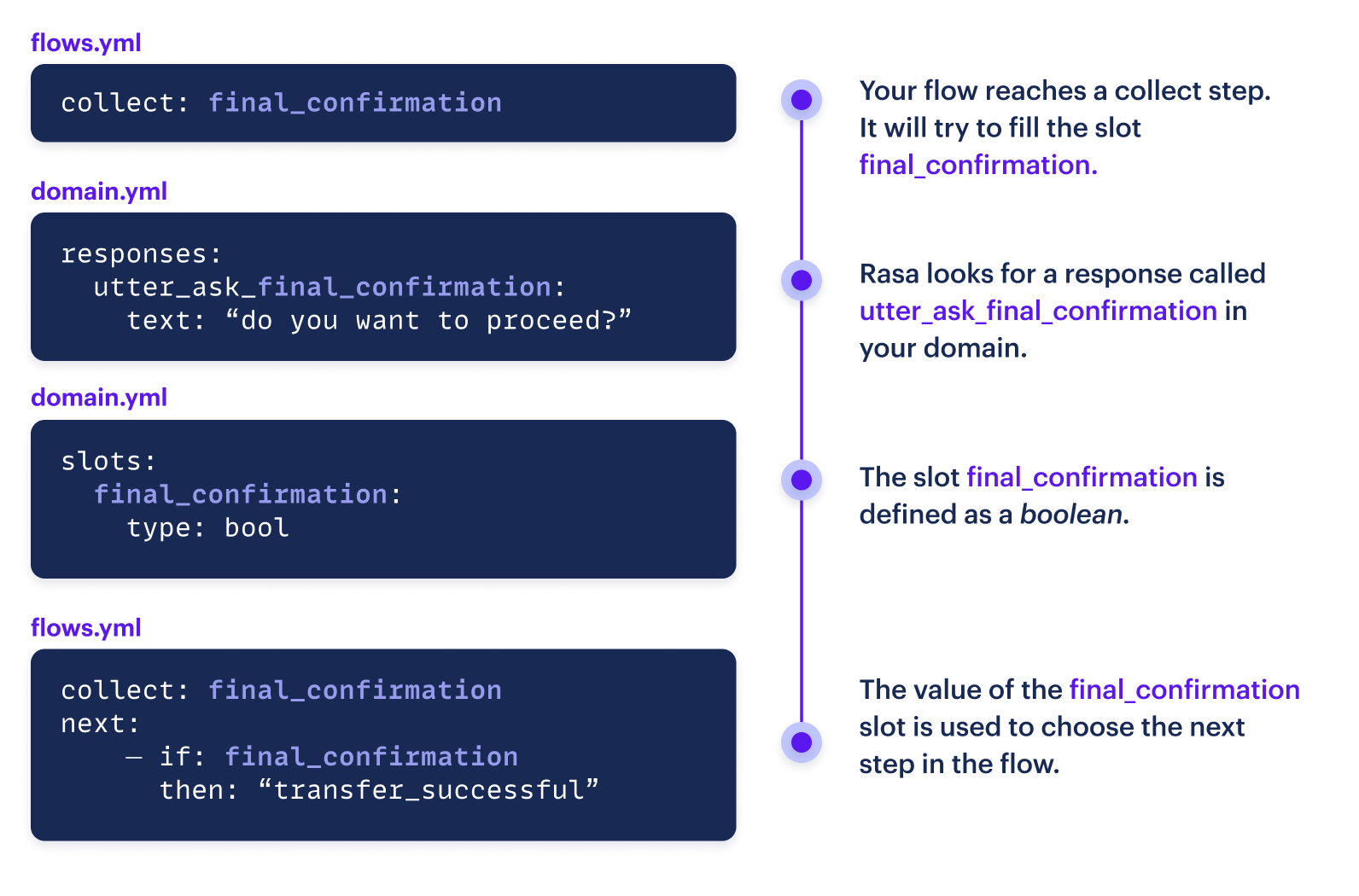

explanation of how slots are used in flows

Descriptions in collect steps

The second collect step includes a description of the information your assistant will request from the user. Descriptions are optional, but can help Rasa extract slot values more reliably.

flows.yml

flows:
  transfer_money:
    description: Help users send money to friends and family.
    steps:
      - collect: recipient
      - collect: amount
        description: the number of US dollars to send
      - action: utter_transfer_complete

Action Steps

The third step in your transfer_money flow is not a collect step but an action step. When you reach an action step in a flow, your assistant will execute the corresponding action and then proceed to the next step. It will not stop to wait for the user’s next message. For now, this is the final step in the flow, so there is no next step to execute and the flow completes.

flows.yml

flows:
  transfer_money:
    description: Help users send money to friends and family.
    steps:
      - collect: recipient
      - collect: amount
        description: the number of US dollars to send
      - action: utter_transfer_complete

Branching Logic

Slots are also used to build branching logic in flows. Action Required You’re going to introduce an extra step to your flow, asking the user to confirm the amount and the recipient before sending the transfer. Since you are asking a yes/no question, you can store the result in a boolean slot which you will call final_confirmation. In your domain file, add the definition of the final_confirmation slot and the corresponding response: utter_ask_final_confirmation. Also add a response to confirm the transfer has been cancelled.

domain.yml

slots:
  recipient:
    type: Text
    mappings:
      - type: from_llm
  # ...
  final_confirmation:
    type: bool
    mappings:
      - type: from_llm

domain.yml

responses:
  utter_ask_recipient:
    - text: "Who would you like to send money to?"
  # ...
  utter_ask_final_confirmation:
    - text: "Please confirm: you want to transfer {amount} to {recipient}?"
  utter_transfer_cancelled:
    - text: "Your transfer has been cancelled."

Notice that your confirmation question uses curly brackets {} to include slot values in your response. Add a collect step to your flow for the slot final_confirmation. This step includes a next attribute with your branching logic. The expression after the if key will be evaluated to true or false to determine the next step in your flow. The then and else keys can contain either a list of steps or the id of a step to jump to. In this case, the then key contains an action step to inform the user their transfer was cancelled. The else key contains the id transfer_successful. Notice that you’ve added this id to the final step in your flow.

flows.yml

flows:
  transfer_money:
    description: Help users send money to friends and family.
    steps:
      - collect: recipient
      - collect: amount
        description: the number of US dollars to send
      - collect: final_confirmation
        next:
          - if: not slots.final_confirmation
            then:
              - action: utter_transfer_cancelled
                next: END
          - else: transfer_successful
      - action: utter_transfer_complete
        id: transfer_successful

To try out the updated version of your assistant, run rasa train, and then rasa inspect to talk to your assistant. It should now ask you to confirm before completing the transfer.

Integrating an API call

An action step in a flow can describe two types of actions. If the name of the action starts with utter_, then this action sends a message to the user. The name of the action has to match the name of one of the responses defined in your domain. The final step in your flow contains the action utter_transfer_complete, and this response is also defined in your domain. Responses can contain buttons, images, and custom payloads. You can learn more about everything you can do with responses here. The second type of action is a custom action. The name of a custom action starts with action_. You are going to create a custom action, action_check_sufficient_funds, to check whether the user has enough money to make the transfer, and then add logic to your flow to handle both cases. Your custom action is defined in the file actions/actions.py. To learn more about custom actions, go here. Your actions.py file should look like this:

actions.py

from typing import Any, Text, Dict, List
from rasa_sdk import Action, Tracker
from rasa_sdk.executor import CollectingDispatcher
from rasa_sdk.events import SlotSet

class ActionCheckSufficientFunds(Action):
    def name(self) -> Text:
        return "action_check_sufficient_funds"

    def run(self, dispatcher: CollectingDispatcher,
            tracker: Tracker,
            domain: Dict[Text, Any]) -> List[Dict[Text, Any]]:
        # hard-coded balance for tutorial purposes. in production this
        # would be retrieved from a database or an API
        balance = 1000
        transfer_amount = tracker.get_slot("amount")
        has_sufficient_funds = transfer_amount <= balance
        return [SlotSet("has_sufficient_funds", has_sufficient_funds)]

Slots are the primary way to pass information to and from custom actions. In the run() method above, you access the value of the amount slot that was set during the conversation, and you pass information back to the conversation by returning a SlotSet event to update the has_sufficient_funds slot.

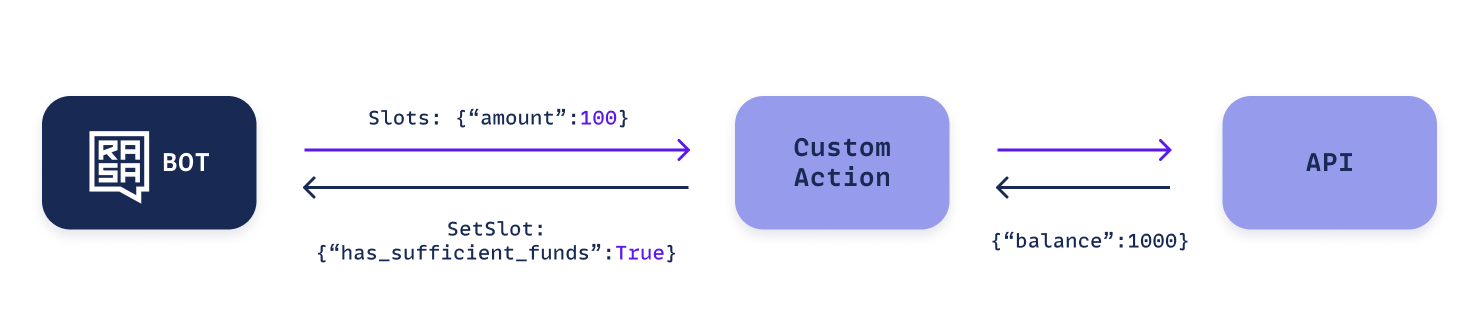

diagram of how slots are used with custom actions

Action Required Now you are going to make three additions to your domain.yml. You will add a top-level section listing your custom actions. You will add the new boolean slot has_sufficient_funds, and you will add a new response to send to the user in case they do not have sufficient funds.

domain.yml

actions:
  - action_check_sufficient_funds

slots:
  # ...
  has_sufficient_funds:
    type: bool
    mappings:
      - type: controlled

responses:
  # ...
  utter_insufficient_funds:
    - text: "You do not have enough funds to make this transaction."

Now you are going to update your flow logic to handle the cases where the user does or does not have enough money in their account to make the transfer. Notice that your collect: final_confirmation step now also has an id so that your branching logic can jump to it.

flows.yml

flows:
  transfer_money:
    description: Help users send money to friends and family.
    steps:
      - collect: recipient
      - collect: amount
        description: the number of US dollars to send
      - action: action_check_sufficient_funds
        next:
          - if: not slots.has_sufficient_funds
            then:
              - action: utter_insufficient_funds
                next: END
          - else: final_confirmation
      - collect: final_confirmation
        id: final_confirmation
        next:
          - if: not slots.final_confirmation
            then:
              - action: utter_transfer_cancelled
                next: END
          - else: transfer_successful
      - action: utter_transfer_complete
        id: transfer_successful

Testing your Custom Action

Action Required Double check that in the file endpoints.yml, that the section for your custom action server is uncommented:

endpoints.yml

action_endpoint:
  actions_module: actions

In the terminal, stop and restart the inspector by running rasa inspect. When you reach the "check_funds" step in your flow, Rasa will call the custom action action_check_sufficient_funds. We have hardcoded the user’s balance to be 1000, so if you try to send more, the assistant will tell you that you don’t have enough funds in your account. At this point you have experience using some of the key concepts involved in building with Rasa. Congratulations!

Adding Voice to Your Assistant

Now that you’ve built a text-based assistant that handles money transfers, let’s expand its capabilities to support voice interactions. Here’s a demo of what you’ll be building,

What You’ll Need for Voice

To enable voice capabilities, you’ll need:

An API key from Deepgram for both speech recognition and speech synthesis.

Alternatively, you can use any of our other supported Speech Integrations.

Setting Up Your Voice Assistant

Action Required Configure your speech service API keys:

Linux/MacOS
Windows

export DEEPGRAM_API_KEY="your-deepgram-api-key"

setx DEEPGRAM_API_KEY your-deepgram-api-key

This will apply to future command prompt windows, so you will need to open a new one to use these variables.

Testing Your Voice Assistant

Action Required To test your voice assistant in the browser, launch the Inspector as usual:

rasa inspect

The Inspector includes voice by default, so you don’t need an extra flag. Switch to voice from the chat input in the Inspector UI. Try saying “I want to send money to Sarah” and experience how your assistant handles the voice interaction. The voice mode allows you to speak to your assistant and hear its responses, simulating a phone call experience.

Next Steps

Now you are ready to apply what you’ve learned to building your own assistant.

Create a new project by running:

rasa init --template calm

Choose which LLM you want to use. This tutorial used an LLM that Rasa fine-tuned for this use case. For new projects created with rasa init --template calm, Rasa defaults to a general-purpose OpenAI chat model (gpt-5.1-2025-11-13) that doesn’t require fine-tuning. You can configure which LLM to use by editing the config.yml file in your project. When you’re ready, you can fine-tune your own model.
Start writing your own flows and custom actions.
